Product Specifications
Optics
Spherical (d/8)Spectral Range
400-700nm, 20nmInter-Instrument Agreement
0.2 ΔE*Color Differences
ΔE*, ΔE(h), ΔE fmc2, ΔE 94, ΔE cmc, Component DifferencesIlluminants
A, C, D50, D55, D65, F2, F6, F7, F8, F10, F11Aperture
11mmWeight
Approximately 500 g (1.1 lbs.) with batteriesMeasurement Condition
Spherical Spin - 650Spherical Spex - 655
Repeatability
0.01 ΔE*Color System
CIELab/Ch, Lab(h), XYZ, Yxy, RxRyRzIndices
YIE313, YID1925, WIE313, CIE, Berger, Color Strength, Opacity, MetamerismObserver
2°, 10°Applicable Languages
English, German, French, Italian, Spanish, Japanese

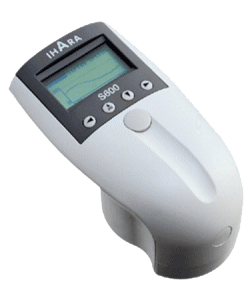

S650 / S655
Spectrophotometer
The S600 series' software interface makes it possible to transfer your measurement results directly to a Windows application, such as Excel.
-
Variety of Uses:
- Color measurement of very small and curved parts with 4mm aperture
- Testing for color fading by wind and weather
- Comparison between color of raw materials and standard color
Accessories
-
Included with purchase:
- Operation Manual
- Black Calibration Standard
- White Calibration Standard with certificate
- Green Checking Reference
- Sample Area Locator
- IHARA-soft QC-Link
- Interface Cable
- Batteries
- Hand Strap
- Plastic Carrying Case
